CUET Physics Semiconductor Electronics: Important Points to Remember
There are following important points in this chapter of Semiconductor Electronics.
- Fermi energy is the maximum possible energy possessed by free electrons of a metal at absolute zero temperature its value is different for different elements.
- n-type semiconductor is better than p-type semiconductor as electrons have more mobility than holes.
- For a given voltage applied conduction current in n-type semiconductor is more than that of p-type semiconductor.
- For a silicon p-n junction the barrier potential is about 0.7V, where as for a germanium p-n junction it is approximately 0.3V.
- An ideal diode permit only unidirectional conduction.
- Rectifier is a device which converts ac voltage to dc voltage. It is based on the fact that, a forward bias p-n junction
conducts and a reverse bias p-n junction does not conduct. - Zener diode is a special purpose diode in which the current suddenly increased in reverse bias condition after a certain voltage.
- Break down voltage is that voltage at which break down of semiconductor occurs. For Ge is 25V and for Si is 35V.
- Light emitting diode give out light radiations when forward biased.
- Solar cells converts solar energy into electrical energy.
- In a transistor circuit, the reverse bias is high as compared to the forward bias. So that it may exert a large attractive force on the charge carriers to enter the collector region.
- Semiconductors are the current control devices.
- The semiconductors devices are current sensitive devices.
- Current due to minority carriers in the junction diode is independent of the applied voltage. It only depends upon the
temperature of the diode. - Common collector amplifier is called power amplifier or current booster or emitter follower.
- Transistor provides good power amplification when they are used in CE configuration.
- A good emitter should have low work function, high melting point, high working temperature, high electrical and
mechanical strength. - NOR and NAND gates are universal gates because they can be used to perform the basic logic function, AND, OR and NOT.
- In modern day circuit, many logical gates or circuits are integrated in one single chip. These are known as integrated circuits (IC).
- Solar cells are also used in artificial satellite to operate the various electrical instruments kept inside the satellite.
- Solar cells are used in calculators, wrist watches and light meters.
- In Burglar – alarm systems, infrared LED’s are used.
- Semiconductor devices are not to be heated for emission of electrons. They start operating instantly. This saves a lot of electric power.
- Energy band diagram of conductor semiconductor & insulator
- P-N Junction (At Equilibrium Condition)
CUET Physics Semiconductor Electronics: Important Formulas
1. Intrinsic & Extrinsic Semiconductor

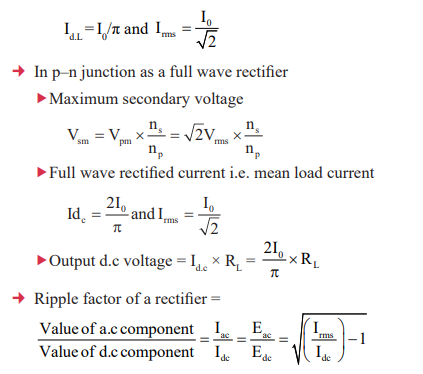

2. p–n Junction and Semiconductor Diode / Semiconductor Devices
3. Junction Transistor (N – P – N , P – N – P Transistors)
4. Logic Gates
