CUET Physics Mock Test
CUET Physics Question No: 1
Alternating current can not be measured by dc ammeter because
Option A : ac cannot pass through dc ammeter
Option B : Average value of complete cycle is zero
Option C : ac is virtual
Option D : ac changes its direction
Show/Hide Answer Key
Option B: Average value of complete cycle is zero
In dc ammeter, a coil is free to rotate in the magnetic field of a fixed magnet. If an alternating current is passed through such a coil, the torque will reverse its’s direction each time the current changes direction and the average value of the torque will be zero.
CUET Exam Physics Question No: 2
In an ac circuit, peak value of voltage is 423 vol. Its effective voltage is
Option A : 400 volts
Option B : 323 volts
Option C : 300 volts
Option D : 340 volts
Show/Hide Answer Key
Option D: 300 volts
Effective Voltage
CUET UG Physics Question No: 3
In an ac circuit I = 100 sin 200 πt. The time required for the current to achieve its peak value will be
Option A : 1/100 sec
Option B : 1/200 sec
Option C : 1/300 sec
Option D : 1/400 sec
Show/Hide Answer Key
Option D: 1/400 sec
CUET Domain Subject Physics Question No: 4
The peak value of an alternating current is 6 amp, then r.m.s value of current will be
Option A : 3 A
Option B : 3√3A
Option C : 3√2A
Option D : 2 √3A
Show/Hide Answer Key
Option C: 3√2A
CUET BSc Physics Question No: 5
If E0 represents the peak value of the voltage in an ac circuit, the r.m.s. value of the voltage will be
Option A : E0/π
Option B : E0/2
Option C : E0/√π
Option D : E0/√2
Show/Hide Answer Key
Option D: E0/√2
CUET Entrance Exam Physics Question No: 6
The peak value of 220 volts of ac mains is
Option A : 155.6 volts
Option B : 220 volts
Option C : 311 volts
Option D : 440 volts
Show/Hide Answer Key
Option C: 311 volts
Peak value =
CUET Exam Question No: 7
A sinusoidal ac current flows through a resistor of resistance R. If the peak current is IP , then the power dissipated is
Option A : Ip2R cosθ
Option B : 1/2 Ip2R
Option C : 4/π Ip2R
Option D : I/π Ip2R
Show/Hide Answer Key
Option B: 1/2 Ip2R
Since f ∝ 1/d2, when r is halved the force becomes four times.
CUET Physics Practice Questions No: 8
The frequency of ac mains in India is
Option A : 80 Hz
Option B : 50 Hz
Option C : 60 Hz
Option D : 120 Hz
Show/Hide Answer Key
Option B: 50 Hz
The frequency of ac mains in India is 50 Hz.
CUET Physics Sample Paper Question No: 9
The root mean square value of the alternating current is equal to
Option A : Twice the peak value
Option B : Half the peak value
Option C : 1/√2 times the peak value
Option D : Equal to the peak value
Show/Hide Answer Key
Option C: 1/√2 times the peak value
The r.m.s value of the alternating current is equal to 1/√2 times the peak value.
CUET Physics Mock Test Question No: 10
The voltage domestic ac is 220 volts. What does this represent
Option A : Mean voltage
Option B : Peak voltage
Option C : Root mean voltage
Option D : Root mean square voltage
Show/Hide Answer Key
Option D: Root mean square voltage
The voltage of domestic ac is 220 volts. It represents root mean square voltage.
CUET Physics Question No: 11
The process by which ac is converted into dc is known as
Option A : Purification
Option B : Amplification
Option C : Rectification
Option D : Current amplification
Show/Hide Answer Key
Option C: Rectification
The process by which ac is converted into dc is known as rectification.
CUET Exam Physics Question No: 12
The ratio of peak value and r.m.s value of an alternating current is
Option A : 1
Option B : 1/2
Option C : √2
Option D : 1/√2
Show/Hide Answer Key
Option C: √2
The ratio of peak value and r.m.s value of an alternating current is √2.
CUET UG Physics Question No: 13
A transformer is based on the principle of
Option A : Mutual Inductance
Option B : Self inductance
Option C : Ampere’s law
Option D : Lenz’s law
Show/Hide Answer Key
Option A: Mutual Inductance
A transformer is based on the principle of mutual inductance.
CUET Domain Subject Physics Question No: 14
Which of the following is not an application of eddy currents.
Option A : Induction furnace
Option B : Galvanometer damping
Option C : Speedometer of automobiles
Option D : x-ray crystallography
Show/Hide Answer Key
Option D: x-ray crystallography
x-ray crystallography is not an application of eddy currents.
CUET BSc Physics Question No: 15
The core of a transformer is laminated to reduce energy losses due to
Option A : Eddy current
Option B : Hysteresis
Option C : Resistance in winding
Option D : None of these
Show/Hide Answer Key
Option A: Eddy current
Circulation of eddy currents is decreased by use of laminated core.
CUET Entrance Exam Physics Question No: 16
Dynamo is a device for converting
Option A : Electrical energy into mechanical energy
Option B : Mechanical energy into electrical energy
Option C : Chemical energy into mechanical energy
Option D : Mechanical energy into Chemical energy
Show/Hide Answer Key
Option B: Mechanical energy into electrical energy
Dynamo is a device for converting mechanical energy into electrical energy.
CUET Exam Question No: 17
The working of dynamo is based on principle of
Option A : Electromagnetic Induction
Option B : Conversion of energy into electricity
Option C : Magnetic effects of current
Option D : Heating effect of current
Show/Hide Answer Key
Option A: Electromagnetic Induction
Rotation of magnet in the dynamo creates the variable flux which in turn produces the induced current.
CUET Physics Practice Questions No: 18
Work of electric motor is
Option A : To convert ac into dc
Option B : To convert dc into ac
Option C : Both (a) and (b)
Option D : To convert ac into mechanical work
Show/Hide Answer Key
Option D: To convert ac into mechanical work
Work of electric motor is to convert ac into mechanical work.
CUET Physics Sample Paper Question No: 19
A transformer is employed to
Option A : Obtain a suitable dc voltage
Option B : convert dc into ac
Option C : obtain a suitable ac voltage
Option D : convert ac into dc
Show/Hide Answer Key
Option C: obtain a suitable ac voltage
A transformer is a device used to convert alternating current at high voltage into low voltage and vice-versa.
CUET Physics Mock Test Question No: 20
What is increased in step-down transformer
Option A : Voltage
Option B : Current
Option C : Power
Option D : Current density
Show/Hide Answer Key
Option B: Current
We know that for step down transformer
current in the secondary coil is greater than the primary.
CUET Physics Question No: 21
The transformation ratio in the step-up transformer is
Option A : 1
Option B : Greater than one
Option C : Less than one
Option D : Depends on the other factors
Show/Hide Answer Key
Option B: Greater than Once
CUET Exam Physics Question No: 22
A step up transformer has transformation ration 5 : 3. What is voltage in secondary if voltage in primary is 60V?
Option A : 20 V
Option B : 60 V
Option C : 100 V
Option D : 180 V
Show/Hide Answer Key
Option C: 100 V

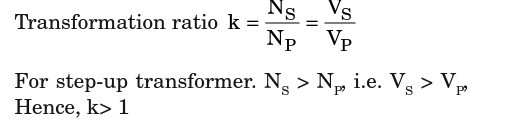

Transformation ratio k = Vs/Vp
